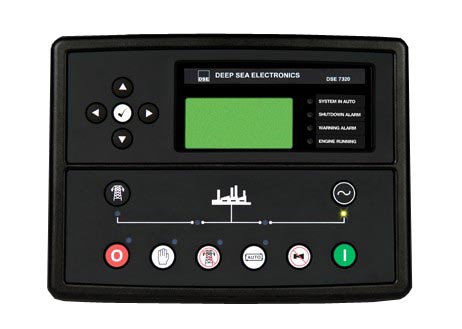

    DSE7320 Auto Start Starting Controller

    Ask Lasest Price
    Brand Name : AE
    Model Number : DSE7320
    Certification : ISO9001
    Price : 1-280 USD/PC
    Delivery Time : 2 working days
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 2250PCS
    • Product Details
    • Company Profile

    DSE7320 Auto Start Starting Controller


    ACCESSING THE FRONT PANEL CONFIGURATION EDITOR
    • Ensure the engine is at rest and the module is in STOP mode by pressing the Stop/Reset button.
    • Press the Stop/Reset and Info buttons simultaneously.
    • If a module security PIN has been set, the PIN number request is then
    shown :
    • Press , the first ‘#’ changes to ‘0’. Press (up) or (down) to adjust it to the
    correct value.
    • Press (right) when the first digit is correctly entered. The digit you have just entered will now
    show ‘#’ for security.
    • Repeat this process for the other digits of the PIN number. You can press (left) if you need to
    move back to adjust one of the previous digits.
    • When is pressed after editing the final PIN digit, the PIN is checked for validity. If the number is
    not correct, you must re-enter the PIN.
    • If the PIN has been successfully entered (or the module PIN has not been
    enabled), the editor is displayed :
    EDITING A PARAMETER
    • Enter the editor as described above.
    • Press the left or right buttons to cycle to the section you wish to view/change.
    • Press the up or down buttons to select the parameter you wish to view/change within the currently
    selected section.
    • To edit the parameter, press to enter edit mode. The parameter begins to flash to indicate that
    you are editing the value.
    • Press the up or down buttons to change the parameter to the required value.
    • Press to save the value. The parameter ceases flashing to indicate that it has been saved.
    • To exit the editor at any time, press and hold the button.

    ACCESSING THE ‘RUNNING’ CONFIGURATION EDITOR
    • The ‘running’ editor can be entered while the engine is running. All protections remain active if the
    engine is running while the running editor is entered.
    • Press and hold the button to enter the running editor.
    EDITING A PARAMETER
    • Enter the editor as described above.
    • Press the left or right buttons to cycle to the section you wish to view/change.
    • Press the up or down buttons to select the parameter you wish to view/change within the currently
    selected section.
    • To edit the parameter, press to enter edit mode. The parameter begins to flash to indicate that
    you are editing the value.
    • Press the up or down buttons to change the parameter to the required value.
    • Press to save the value. The parameter ceases flashing to indicate that it has been saved.
    • To exit the editor at any time, press and hold the button.

    DSE7320 Auto Start Starting Controller
