    AVR VR6 for caterpillar

    Ask Lasest Price
    Brand Name : Caterpillar
    Certification : ISO9001
    Model Number : VR6
    Price : 1-250USD/pc
    Delivery Time : 1-3 working days
    Payment Terms : T/T, Western Union, Paypal. Credit Card
    Supply Ability : 4250 pcs
    • Product Details
    • Company Profile

    AVR VR6 for caterpillar


    AVR VR6 for caterpillar

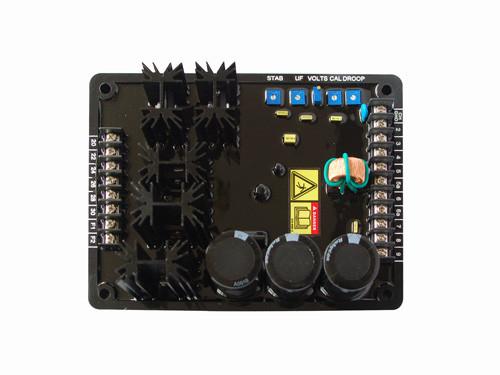

    VR6 avr is special for caterpillar generator set.

    specification


    VR 6 Specifications
    Power requirements: K63-12B K125-10B
    INPUT
    Voltage,reted 120v 240v
    Voltage,limits 90-140v 180-280v
    Frequency 50-240Hz 50-240Hz
    Burdern(at rate V) 1440VA 2400VA
    OUTPUT
    Voltage,continuous 65Vdc 125vdc
    Voltage,forcing 10 sec 100Vdc 200vdc
    Current,continuous 12Adc 10Adc
    Current,forcing 10 sec. 25Adc 20Adc
    Min.field resistance 4 Ohms 10Ohms
    Sensing: 100 to 120V +/-10% with standard 10K Ohm
    control,1 phase or 3 phase,50/60 or 400 Hz; 1VA maximum
    burden perterminal
    Paralleling: 1A or 5A for 6% droop maximum;10VA maximum
    burden;isolated for use in either reactive droop or cross-current method
    Regulation accuracy: +/-0.5% maximum over full range of generator
    loading and +/-0.5% frequency variation
    Under frequenct protection breakpoints:
    Adjustable 45 to 65Hz(50/60 Hz regulators only)
    Regulator Response: Less than 4 milliseconds
    Thermal stability: Less than 0.5% per 40° ambient temperature change
    Vibration: 0.5G at 18 to 2000Hz
    Power dissipation: Less than 50W at maximum continuous rating
